Structural

Adapter (Wrapper)

Purpose

Convert the incompatible interface of a class into another interface compatible with clients.

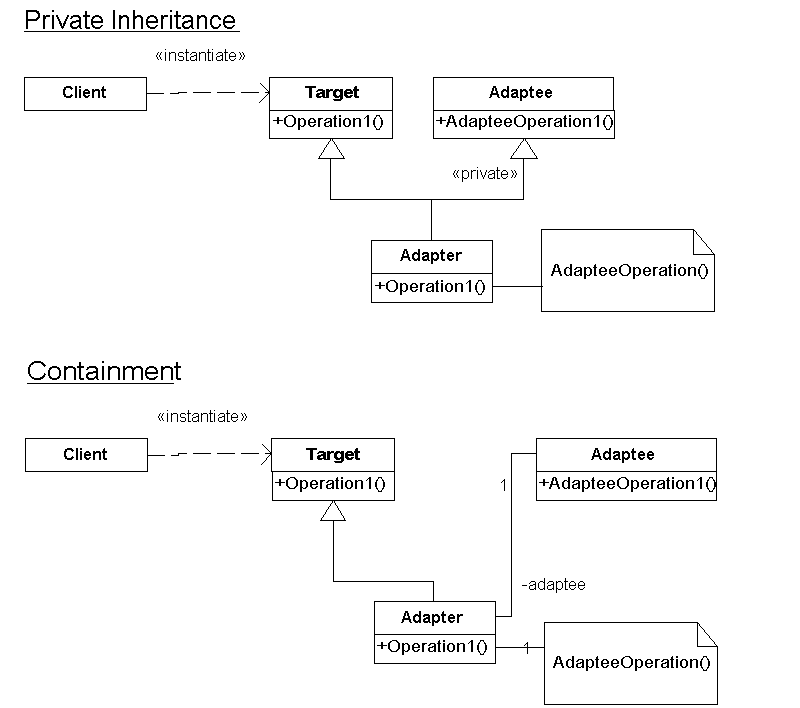

UML

Behavior

A client calls operations on an adapter object, which in turn forwards the call on to the adaptee.

Example

The interface of std::deque<T> is (partially) adapted to support the interface of a queue. A queue typically supports, among other operations, push, pop, front and back operations. Whereas std::deque<> supports, among others,  push_front, push_back, pop_font, pop_back, etc. Note how Queue<T>::push(x) calls std::deque<T>::push_back(x).

Usage

/* Adapter: Adapts the interface of adaptee to an interface acceptable by the client In this example, the client expects a queue to support push, pop, front, and back operations. A std::deque is therefore adapted to the behavior of a queue by wrapping the deque operations with the expected interface. */

template<typename T>
class Queue
{
// Public Interface
public:
    void push( const T& x)
    {
        m_deque.push_back( x );
    }
    T pop()
    {
        // Check container is not empty
        if (m_deque.empty())
            throw QueueEmpty();

        // Get first element from deque and pop it form the front
        T element( m_deque.front() );
        m_deque.pop_front();

        return element;
    }
    T& front()
    {
        // Check container is not empty
        if (m_deque.empty())
            throw QueueEmpty();

        return m_deque.front();
    }
    T& back()
    {
        // Check container is not empty
        if (m_deque.empty())
            throw QueueEmpty();

        return m_deque.back();
    }

// Data members
private:
    std::deque<T> m_deque;
};

class QueueEmpty : std::exception
{
public:
    virtual const char *what() const throw()
    {
        return "Queue is empty";
    }
};

int main(int argc, char* argv[])
{
    try
    {
        // Push 3 items
        Queue<int> q;
        q.push( 10 );
        q.push( 20 );
        q.push( 30 );

        std::cout << "front is: " << q.front() << std::endl;
        std::cout << "back is: " << q.back() << std::endl;

        // Pop 4 items
        q.pop();
        q.pop();
        q.pop();
        q.pop(); // throws exception. Queue is empty
    }
    catch( const QueueEmpty& e)
    {
        std::cout << e.what();
    }

    return 0;
}

Notes

• An adapter can use either inheritance or containment. Both have trade offs as follows:

  Inheritance

  • Cannot adapt a class and its subclasses, since the adaptee is committed to a concrete class.
  • The adapter can override some of the adaptee's virtual methods.
  • No additional pointer indirection is required to access the adaptee methods.

  Containment

  • The adapter cannot override virtual methods of the adaptee (a  member object).
  • The adapter works with the adaptee and all its subclasses.
• Two way adapters: An adapted object no longer conforms to the Adaptee interface and hence cannot be used wherever an adaptee object can. Two way adapters provide transparency and allow two clients to view the same object differently. In the example above, a client may need to use Queue class using a queue's interface, while another client may need to use it using a std::deque interface. A potential solution is to create another class:
      class QueueDeque : public Queue, public std::deque<T> { ... };
