Layers

Summary

• Purpose
• Scenario
• Structure & UML
• Example
• Applicability
• Strategies / Variants
• Benefits
• Liabilities
• Related Patterns

Purpose

Stack orthogonal application features that access data with increasing levels of abstraction.

Scenario

The previous patterns described strategies for decoupling the concepts of data access details, data model, and object-relational mapping from application code. These concepts are orthogonal because each can be addressed separately without affecting the other. An application's data model is often orthogonal to its data access mechanisms. The data model is the static structure of the data while data access addresses how to move data from the data store to the application code. Altering the data model does not usually require a change in the data model and the inverse is usually true.

Decoupling orthogonal components is almost always a good idea because it grants you freedom to alter them independently. Finer grained components can also be orthogonal. For example, code within a data accessor often addresses two distinct issues - connection management which involves initializing connections and properly pooling them, and generating ADO.NET (SQL) statements for data access. This is very little overlap between the solution for these two issues, so it makes sense to decouple them into separate modules.

Generally stated, software components are orthogonal if they address completely disjointed issues and can be assembled in any order to build an overall solution. However, it is important to note that orthogonality does not preclude dependence. In other words, just because two modules solve to completely different problems, it does not mean that you cannot build one without the other.

The Layers pattern describes how to stack multiple, orthogonal components together to form a robust and maintainable application.  A layer is a set of components that implement a software abstraction. You can stack abstract layers that incrementally decompose a solution down to its ultimate physical implementation. Layers effectively manage the mapping from abstract concepts to a concrete implementation in steps, solving the problem one piece at a time. The following figure illustrates a stack of layers between application logic and physical database access:

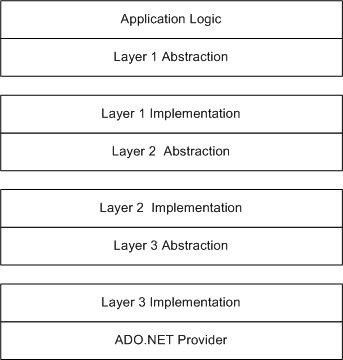

The model above can then be generalized as follows:

As with any orthogonal components, it is always a good practice to decouple layers so that they are only dependent on lower level abstractions, rather than on implementation details. When you define an abstraction (interface) for each layer, you can view a single layer implementation as an adapter from one abstraction to another.

Data access code is amenable to building with layers because there are so many orthogonal aspects to it. For example, the following details are candidates for implementation within a separate layer:

• Domain object mapping
  Mapping between relational data and domain objects should be done within a single layer.

• Data Conversion
  Application data often needs to be converted to a data format usable by the database and vice verse - for example, TEXT, NTEXT, BLOBS, CLOBs, etc. If there is a possibility that you might support different database platforms, then it makes sense to define a separate layer that is devoted to data format conversions.

• Data Operation Mapping
  Logical database operations as suggested by the data accessor pattern should be implemented in a separate layer.

• Resource Management
  Database resource management is a good candidate for isolation in a separate layer because resource optimizations can have a significant effect on system performance. This includes strategies for connection pooling, statement caching, and resource timeouts. If you do not isolate these operations within their own separate layer, then components in other layers will need to absorb these operations. Obviously this has the effect of making code more complex and difficult to optimize.

• Caching
  Caching frequently-accessed data can improve performance considerably. Like other optimizations, caching introduces complexity, hence it is a good candidate for isolation in a separate layer. Caching operations typically define the same input and output operations but intercept some input operations when cached data is already available.

• Authorization
  You can implement application-level authorization within a software layer by comparing operations to a set of authorization rules defined by an administrator.

• Logging
  A separate layer for logging can be used to intercept all requests and responses to provide a consistent logging approach. You may even find it useful to define multiple logging layers that track operations as they pass through different abstraction levels.

Structure & UML

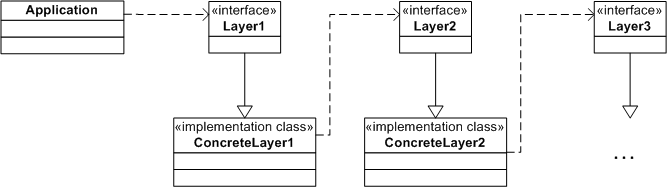

The static structure of the Layers pattern is shown below:

Application code works in terms of Layer 1, the most abstract data access layer. Each concrete layer M implements its interface and delegates calls to the next and less abstract interface M+1. Concrete layer N (not shown) is the lease abstract and interacts directly with the ADO.NET provider. This static structure may be subject to a few variations:

• Describe a layer with multiple interfaces as it may not be possible to define a layer in terms of a single interface.
• Define an abstraction using a class rather than an interface, especially for those objects that represent simple data structures like a simple row or even an exception.
• Use non-strict layering as layers do not need to form a strict linear structure. For example, you may find it convenient to skip a layer on certain occasions especially for optimized operations.

The sequence diagram of the Layers pattern is shown below:

The application code invokes an interface on concrete layer 1 which delegates to an interface on concrete layer 2 and so on until the last concrete layer is reached. In reality, most layered data access implementations are not this simple - for example, it is quite common for a single call to concrete layer M instance to map to multiple calls to the next layer (layer M+1)

Example

Layer 3 is the data accessor layer. IDataAccess interface defines this layer's abstraction using logical database operations and does not expose any SQL or call-level interface semantics at all. This layer is the bottom-most layer and is implemented in terms of the actual ADO.NET provider:

/* LAYER 3 */

public interface IDataAccess
{
    void ExecuteNonQuery( string strConnectio, string strSQL );
    object ExecuteScalar( string strConnectio, string strSQL );
    DataSet ExecuteDataSet( string strConnectio, string strSQL );
    DataReader ExecuteDataReader( string strConnectio, string strSQL );
}

public class DataAccessSQLServer : IDataAccess
{
    /* IDataAccess implementation */
    void ExecuteNonQuery( string strConnectio, string strSQL )
    { /* Perform required data access using SQL Server ADO.NET Provider */ }

    object ExecuteScalar( string strConnectio, string strSQL )
    { /* Perform required data access using SQL Server ADO.NET Provider */ }

    DataSet ExecuteDataSet( string strConnectio, string strSQL )
    { /* Perform required data access using SQL Server ADO.NET Provider */ }

    DataReader ExecuteDataReader( string strConnectio, string strSQL )
    { /* Perform required data access using SQL Server ADO.NET Provider */ }
}

public class DataAccessOracle : IDataAccess
{
    /* IDataAccess implementation */
    void ExecuteNonQuery( string strConnectio, string strSQL )
    { /* Perform required data access using Oracle ADO.NET Provider */ }

    ...
}

Layer 2 is the active domain object layer that is responsible for mapping physical data to domain (business) objects. This layer delegates all database calls to layer 1 in order to access the database:

/* LAYER 2 */

public interface ICustomerDataAccess
{
    DataRow  GetCustomer( int nID );
    void     DeleteCustomer( int nID );
    void     CreateCustomer( string strFirstName, string strLastName );
}

public class CustomerDataAccess : ICustomerDataAccess
{
    /* ICustomerDataAccess implementation */
    DataRow GetCustomer( int nID )
    {
        // Do some pre-processing, for example creating parameters for a stored procedure
        // that will be called via the data accessor

        // Get data access component Note how we get an interface 'instance' and access the subsequent
        // data access layer via its interface
        IDataAccess access = GetDataAccessor( Accessor.SQLServer );
        DataSet ds = access.ExecuteDataSet( strConnectionString, "spGetCustomer", aParams );

        // Return data
        return ds.Tables[0].Rows[0];
    }

    void DeleteCustomer( int nID )
    {
        // Do some pre-processing

        // Get an interface 'instance' and access the subsequent data access layer via its interface
    }

    void CreateCustomer( string strFirstName, string strLastName )
    {
        /* Same logic as above ... */
    }
}

public interface IOrderDataAccess
{
    void UpdateOrder( int nID );
    void DeleteOrder( int nID );
    void CreateOrder( string strFirstName, string strLastName );

}

public class OrderDataAccess : IOrderDataAcess
{
    /* IOrderDataAccess implementation */

    public void AddOrder( ... )
    {
        // Do some pre-processing, for example creating parameters for a stored procedure
        // that will be called via the data accessor

        // Get data access component Note how we get an interface 'instance' and access the subsequent
        // data access layer via its interface
        IDataAccess access = GetDataAccessor( Accessor.SQLServer );
        access.ExecuteDataSet( strConnectionString, "spAddOrder", aParams );
    }
}

Layer 1 is the business object layer and it is responsible for implementing various business operations. Note how the SubmitOrder function accesses layer 2 functionality (which accesses layer 1 functionality) to retrieve customer and order information:

/* LAYER 1 */

public interface IOrder
{
    void SubmitOrder( ... );
    void CancelOrder( ... );
    void AmendOrder( ... )
}

public class Order : IOrder
{
    /* IOrder implementation */
    void SubmitOrder( int nOrderID, int nCustomerID )
    {
        // Create a new order
        OrderDataAccess obOrder = new OrderDataAccess();
        obOrder.AddOrder( nOrderID );

        // Get customer identified by nCustomerID and link to this order
        CustomerDataAccess obCust = new CustomerDataAccess();
        DataRow roCust = obCust.GetCustomer( nCustomerID );

        ...

    }

    void CancelOrder( ... ) { ... }
    void AmendOrder( ... )  { ... }
}

Applicability

Use this pattern when:

• You want to decouple data model, data access details, or any other orthogonal feature that you plan to alter independently.
• You want to define multiple incremental levels of abstraction to simplify development and maintenance.
• You want to prototype or build a system gradually using stubbed or simplified layer implementation and then fill in more scalable or optimized implementations later in the development process.

Strategies / Variants

Consider these strategies when designing with the Layers pattern:

• Stub layer implementations for prototyping
  Splitting application functionality into layers allows you to define stubs (interfaces) for layers and this in turn allows you to develop components concurrently or build unoptimized version for early demonstrations. Stub layers are also helpful in building the entire layered structure early in the development process. This is important as it ensures that all layers interact as expected. Sometimes unexpected layer inter-dependencies crop up requiring you to redefine one or more layers. It is much easier to fix this type of problem before you build a significant quantity of code in each layer.

• Isolate layer initialization
  Coupling layer implementations happens by passing a ConcreteLayer M+1 instance as a constructor parameter to a ConcreteLayer M instance, or by calling a property on a ConcreteLayer M instance. At that point, ConcreteLayer M saves a reference to ConcreteLayer M+1 so that it can invoke its operations. As the number of layers increases, it becomes more difficult to keep track on the combination and ordering of layers. Therefore, isolate all layer initializations within a single module which also serves to describe the application's layering structure. If you need to re-arrange layers and hence their initializations, you can do so within the initialization module.

Benefits

• Software design decomposition
  Layers are a convenient strategy to decompose a large software design into smaller more manageable components. This allows you to address large-scale issues early in the development cycle and fine-tune details later.

• Feature modularization
  Defining layers allows you to build and maintain them concurrently and independently.

• Detail encapsulation
  Each layer encapsulates the implementation of one or more data access features. This relieves other layers from any dependence, making layer coupling looser and implementation more focused.

• Pluggability
  Defining clear layer abstractions enables you to plug in one or more implementations of a particular layer during runtime initializations. This can be a powerful strategy to support multiple diverse data access semantics and topologies with a single set of interfaces.


Liabilities

• Layer interaction and initialization complexity
  Layers interact with each other via interfaces. As you build more layers, you need to maintain their interactions to ensure that the solution is still viable. These interactions become more complex with more layers, especially if the layer structure is not linear.

Related Patterns

• Instances of Data Accessor, Active Domain Object, Object-Relational Map and others can make layers within a single system. It is also convenient to encapsulate resource and cache patterns within one or more layers.
• Some concrete layer implementations are instance of the Adapter pattern since they adapt their own layer's abstraction to the abstraction of subsequent layers.
• You can define more than one layer using the same abstraction (interface).  This is handy if the layers implement different features for the same database operations. Stacking multiple layers that implement the same abstraction forms an instance of Chain of Responsibility.
