Designing Components for an Application or Service
Summary
Detailed Summary
Every software solution, regardless of its specific business needs, uses
similar kinds of components. For example, most if not all distributed
applications need to use a data access component, Identifying these kinds
of common components found in distributed applications will help you build a

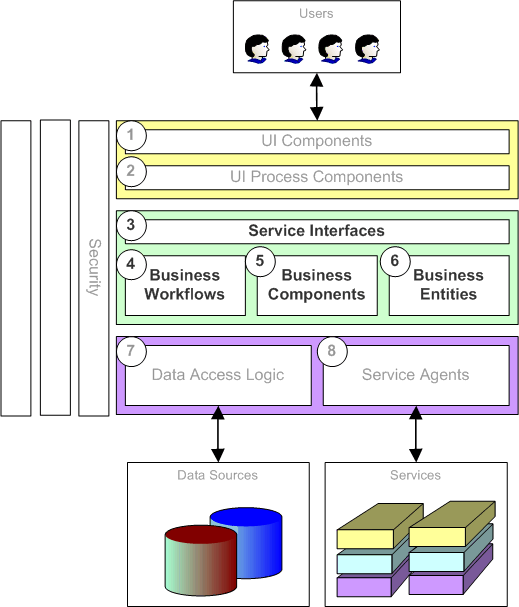

blueprint for an application or service design. The following figure shows
common component types found in most distributed applications:
These components types are described below:
- UI Components
User Interfaces are implemented using Windows Forms, ASP.NET, controls, or
any other technology uses to format/render data for users and to
acquire/validate data coming from users.
- UI Process Components
In many cases, a user's interaction with the system follows a predictable
process. For example, to search for an item you may need to specify some
sort of product/item ID, apply an appropriate filter, and then indicate how
output should be formatted. Rather than hard-coding this logic within the UI
elements, you can use a UI process component to help synchronize and
orchestrate these user actions. UI Process Components (or UI Managers as I
prefer to call them) ensure that the process flow and its state management
are encapsulated within a component that can be potentially reused by
multiple UIs. In the example above, a SearchManager
is the appropriate UI process component.
- Service Interfaces
Service interfaces are often referred to as business facades. Service
interfaces are used to expose business logic as a service.
- Business Workflows
Business workflows define and coordinate long-running, multi-step business
processes. Many business processes involve multiple steps that must be
orchestrated and performed in the correct order. For example, committing an
order may involve multiple steps (verifying inventory, calculating total
cost, authorizing payment, arranging delivery) and can take an indeterminate
amount of time to complete. Therefore, tasks involved in committing an order
and the data required to complete them would have to be managed.
- Business Components
Business components implement the business logic of the application. Business
Workflows use business components. From the previous example given in Business
Workflows, the tasks involved in committing an order would each be
implemented as a business component - you would have a component to verify
inventory, another component to calculate total cost, and so on.
- Business Entities
Business entities are internal data structures that represent real-world
entities that the application has to work with such as a product or an
order. Business entities are often implemented as DataSets,
DataReaders, or XML streams so that they can be
passed between data access components and UI components.
- Data Access Logic
Data Access components are used to abstract data access in a separate layer.
Doing so centralizes data access functionality and makes it easy to
maintain.
- Service Agents
Service agents can be considered as adapters that convert the varying
interfaces of different services into compatible interface with the client
application. Service agents can also provide additional services such as
mapping between data formats required by the application and the service.
For example, if the credit card authorization service is on a Unix machine,
you could use a service agent to manage communication via TCP/IP and
translate data formats back and forth between Unix and the .NET
application.
The remaining components, security, operations, and communications involve
components used to perform exception management, caching, authorizations, and
other tasks required to communicate with other applications and service. and
will be discussed in detail in Security,
Operational Management, and Communications Policies.
The following table roughly illustrates how the given component types
(process components, data access logic, etc) map to certain design patterns:
UI Component |
Presentation Layer
View Layer
Client Layer |
UI Process Component |
Application Controller Pattern
Mediator Pattern
Application Model Layer |
Service Interfaces |
Remote Facade Pattern |
Business Workflows |
Domain Layer |
Business Components |
Domain Layer
Transaction Script Pattern |
Business Entities |
Data Transfer Object
Domain Model |
Data Access Logic Components |
Data Source Layer
Infrastructure Layer
Integration Layer |
Service Agents |
Data Source Layer
Infrastructure Layer
Integration Layer |
Consider the following recommendations when designing applications and
services:
- Identify required kinds of components
Some applications have only one user interface with simple UI and may not
require UI process components. Other applications may be simple is
terms of their business processes and do not need to integrate with other
services via service agents.
- Understand component communication
Component communication can affect physical distribution. Keep coupling low
and cohesion high by choosing coarse-grained rather than chatty interfaces
for remote communication.
- Use consistent data format
Mixing XML, strings, DataSets, DataReaders,
serialized objects and other formats in the same application will make the
application more difficult to develop, extend, and maintain. If you must mix
data representation formats, keep the number of formats low. For example,
the data access layer can return data in DataReaders
for ASP.NET front-end, but may return DataSets
for user by business processes.
- Abstract policies from application logic
Keep code that enforces policies abstracted as much as possible from the
application business logic. Rely on attributes, APIs or utility components
to provide a single-line of code access to functionality related to
policies such as authorizing users, publishing exceptions, tracing, and so
on.
- Determine kind of layering
In a strict layering system, components in layer A can only call components
in layer B and cannot call components in layer C. In a more relaxed layering
system, components in a layer can call components in layers that are not
immediately below it. In all cases, try to avoid upstream calls and
dependencies in which layer C invokes layer B. I prefer to use a relaxed
layering system to prevent cascading changes throughout all layers whenever
a layer close to the bottom changes, and to prevent having components that
do nothing but forward calls to layers underneath.
Definition: The presentation layer consists of all components required
to enable user interaction with the system.
The most simple presentation layer contains UI components such as Windows
Forms or ASP.NET. For more complex user interactions, you can design UI process
components to orchestrate UI elements and control user interactions. UI process
components are useful when user interactions follow a specific pattern (just
like a wizard used to accomplish a task).
Designing presentation layers contains two broad topics:
UI Components, which manage interactions with the user, may be implemented in
different ways. For example, you can have Web-based UI, Windows-Forms UI, voice
rendering, document-based programs, mobile client applications, and so on.
When accepting user input, UI components::
- Must not initiate, participate, or vote in transaction.
- Must acquire data and assist in data entry using visual clues, validation, and
the appropriate controls for the task.
- Must capture events from the user and call the appropriate event-handlers.
- Must restrict the types of input a user can enter. Numeric fields should allow
non-numeric characters.
- Must perform data entry validation - restricting range of value or ensuring
that mandatory data is entered.
- Must perform simple mappings and transformations of data entered by the user to
values needed by the underlying components..
- Must interpret user hints such as drag-and-drop.
- May use a utility component for caching reference data that changes
infrequently
- May use a utility component for paging where long lists of data are
displayed as paged sets.
When rendering output, UI components:
- Must perform formatting of values.
- Must perform any localization work on the rendered data.
- Must provide the user with appropriate status information - for example,
"processing...", "displaying...", "connected",
"disconnected", etc.
- May customize the appearance of the application based on user preferences.
- May use a utility component to provide undo operations.
- May use a utility component to provide clipboard functionality.
While the list is not exhaustive, it lists some of the more common
requirements that all UI components should provide. UI design requirements for
more specific types of UI are shown below:
Windows UI is typically used when you need to provide rich user interaction
and/or offline (disconnected) capabilities, or even integration with the UI of
other applications. Windows UI can take advantage of a wide range of state
management and persistence options and can access local processing power.
There are three main families of Windows standalone user interfaces:
- Full Blown
Gives the greatest amount of control over the user experience and total
control over look and feel of the application. However, it ties the
application to a client platform and the application needs to be deployed to
the users.
- Embedded HTML
You can use additional embedded HTML with the Windows Forms application
to allow for greater run-time flexibility as the HTML can be loaded from
external sources or from a database in disconnected scenarios. However,
additional coding is required to load the HTML, display it, and hookup
events from the HTML control to the application logic.
- Plug-In
UML Use Cases may suggest that your UI could be better implemented as a
plug-in for other applications. In this case, you only need to worry about
code to collect data and work with your business logic.
Consider the following design recommendations when creating Windows
Form-based applications:
- Use data-binding to keep data synchronized across multiple forms that are
open simultaneously. No need to write complex data synchronization code.
- Avoid hard-coding relationships between forms and rely on the user process
components to open them and synchronize data and events. Be especially
careful about hard-coding relationships from child forms to parent forms.
For example, a product-finder form can be used from any other form and not
just from an order-entry form.
- Implement error handlers all forms. For example, all event handlers must
include catch handlers. You may even implement an exception hierarchy where
each form has its own exception class that can be used to set form-specific
exception information.
- Validate user-input in the user interface. In some cases, you may have to
enable/disable controls and visually cue the user when input is invalid.
Validating user input in the user interface prevents unnecessary round-trips
to server-side components.
- If you are creating custom user controls, expose only public properties
and methods.
- Do not implement event handler functionality directly in the event
handler. Implement all event handler functionality in a separate class to
increase maintainability and reuse. For example, when using grids and
editing cells you often have to implement a hander for a BeforeCellUpdate
event where you verify user input, and if input is invalid you display a
message box. The verification functionality should be implemented in a
separate helper function VerifyUserInput that
will be called by the BeforeCellUpdate event
handler:
private void grid_BeforeCellUpdate( object sender,
System.EventArgs e)
{
VerifyUserInput( grid.GetCurrentCell );
}
Consider the following design recommendations when creating ASP.NET user
interfaces:
- Implement a custom error page, and a global exception handler in global.asax.
- Because client-validation at the browser relies on having JavaScript
enabled, you should validate data in the controller functions just as well.
If the UI user process has some sort of a Validate
function, call it before moving to other pages.
- If you are creating Web user controls, expose only public properties and
methods.
- Use ASP.NET view state to store page-specific state. Keep session and
application state for data with a wider scope.
- Event handles and controller functions should invoke functions on the user
process component to guide the user through the current task rather than
redirecting the user to another page.
- Do not implement event handler functionality directly in ASP.NET pages. Implement all event handler functionality in a separate class to
increase maintainability and reuse
<asp:Button id="btnAdd" OnClick="btnAdd_Click"
/>
/* Event handlers */
private void btnAdd_Click(object sender, System.EventArgs e)
{
AddItems();
}
/* Helpers */
private void AddItems()
{
// Code to implement adding items to
the shopping basket
}
In some cases rather than building a custom Windows Forms application to
facilitate user interaction, it might me more appropriate to allow user to
interact with the system through documents created by common tools such
Microsoft Office. Documents can be considered as a metaphor for working with
data, and users may benefit from viewing/entering data in using documents from
tools they often use.
Consider document-based UI in the following cases:
- Reporting Data
Your application - which may be Windows Forms or ASP.NET - may provide a
feature that allows users to view/manipulate data in a document of the
appropriate type. For example, grids may have to option to export data to
Excel where users can view/ manipulate data.
- Gathering Data
Users may use Excel to enter order data and then submit the document to some
business process.
In general, there are two common ways to integrate documents into
applications, working with the documents from the inside and working with the
documents from the outside:
Working with Documents from the Outside
In this scenario you treat the document as an entity. The document itself has
no specific awareness of the application. In this design model, the UI will
perform the following functions:
- Reporting Data
The reporting code obtains reporting data (from some ongoing business
process or from the database), and then generates a document, injects data
into it, formats it, and then finally present it to the user.
- Gathering Data
A user starts by entering information in a document and then submits it
to a Windows-based or Internet-based application. The application scans
through the document's data through the document's object model, and then
performs the necessary actions. At this point, you may decide to either
preserve the document (for auditing purposes) or to dispose of it.
Working with Documents from the Inside
In this scenario you embed application logic into the document itself to
provide the user with an integrated experience within the document. In this
design model, the UI will perform the following functions:
- Reporting Data
You can implement some custom buttons or menu entries to retrieve data
from some business process or database and then display it.
- Gathering Data
You can implement some custom buttons or menu entries to collect data
from the document and then invoke user or business processes.
UI may need to render data that is readily available as queries exposed by
data access components. Calling data access components from the UI may seem to
contradict the layering concept, however, it can be used to adopt the
perspective of your application as one homogenous service. In general, you
should allow UI to directly invoke data access components when:
- You are willing to tightly couple UI semantics with data access methods
and schemas. This tight coupling will require joint-maintenance of data
access and UI components.
- Your physical deployment places data access and UI components together,
allowing you to get data from your data access components in streaming
formats (like DataReader) that can be bound
directly to the output of ASP.NET pages for best performance. From an
operational perspective, allowing direct access to data access logic
components to take advantage of streaming capabilities means that you also
need to install the appropriate drivers to enable data access components to
talk to the database. For example, a data access component that talks to an
Oracle database requires that Oracle Client be installed on the same
machine where the data access component is installed.
Note: Implementing UI with user process components is not trivial.
Before committing to this approach, evaluate whether or not your application
requires this level of abstraction and orchestration.
As noted in the definition of User Process
Components,a user's interaction with the system may follow a predictable
process. Rather than hard-coding this logic within the UI
elements, you can use a UI process component to help synchronize and
orchestrate these user actions. UI Process Components - or UI Managers as I
prefer to call them- ensure that the process flow and its state management
are encapsulated within a component that can be potentially reused by
multiple UIs. For example, a SearchManager
is an appropriate UI process component to synchronize and
orchestrate (i.e., manage) product look-ups. Therefore, partitioning user
interaction flow from the activities of rendering data and gathering data from
the user can increase the application's maintainability and provide a clean
design to which you can easily add seemingly complex features. Otherwise, an
unstructured approach to implementing user interface logic may result in
undesirable situations where if you need to add a specific UI to a given device
(i.e., Windows Forms, or ASP.NET), you may need to redesign control logic and
data flow.
User process components are typically implemented as .NET classes that expose
methods that can be called from the UI, with each method encapsulating logic to
perform a specific action in the user process. As expected then, the UI creates
an instance of a user process component and uses it to transition through the
various steps of the process.
Designing a user process component to be used from multiple UIs (Windows
Forms, ASP.NET, etc.), results in a more complex implementation to avoid
device-specific issues. Nonetheless, it can help distribute the UI development
work between multiple teams, each using the same UI process component. You
should also design process components with globalization in mind to allow for
localization to be implemented in the user interface. For example, try to use
culture-neutral formats and Unicode strings to make easier for the localized UI
to call the user process component.
The following code snippet show a typical user process component for product
look-up:
public class SearchManager
{
/* Data members */
/* Public interface */
public void SetProduct( Product obProd )
{ ... }
public void SetFilter( Filter obFilter )
{ ... }
public ProductsCollection Search()
{ ... }
public void ClearProducts()
{ ... }
}
The following topics are covered:
Separating user interaction functionality into user interface and user
process components provides the following advantages:
- Persists long-running user-interaction state
This allows a user interaction to be paused and resumed, possibly even using
a different UI. For example, the UI for shopping carts often allows users to
store and retrieve their items at a later time.
- Isolates long-running user-interaction state from business-related
state
Because some user processes can be paused and resumed later, the
intermediate state of the user process should be stored separately from the
application's business data. Storing this intermediate state is often done
by marking the user process as serializable. For example, a
user could specify only part of the information required to place an order,
and then resumes the checkout at a later time. The pending order data should
be persisted (serialized) separately from data relating to completed orders,
allowing you to perform business operations on completed data only. This
approach avoids having to implement complex filters to avoid operation on
incomplete data.
- Allows the use of the same user-process by more than one UI
For example, a user process for processing shopping carts can be used by
both Windows Forms and
ASP.NET versions of the same application.
- Handles concurrent user activities
Some applications may allow a user to perform multiple tasks at the same
time by making more than one UI element available. With user processes, you
can simplify state management of multiple ongoing processes by mapping each UI element
(form, grid, etc.) to a particular instance of the user
process component.
- Synchronizes activities across multiple UI elements
If multiple UI elements (forms, grids, etc. ) are used in a particular UI activity, it is
important to keep their state and data synchronized. For example, it might be required that
data be simultaneously displayed in tabular and chart form. Changes to data
should be reflected in both forms of display. User process
components help implement this kind of functionality by centralizing the
state of related UI elements in a central location. You can further simplify
synchronization across multiple UIs by using bindable data.
The following sub-sections explain the steps involved in designing user
process components:
Before you can design a user process, you must first identify it. When
reading the following points, it can be helpful to have the 'saving a shopping
cart' user process in-mind:
- Identify the business (not user) process that the user process will
help to accomplish.
- Identify the data needed by the business process. The user process must be
able to submit this data to the business process.
- Identify state that you will have to maintain throughout the user activity
to assist rendering and data capture in the UI.
- Design the visual flow of the user process and the way that each UI
element receives or gives control flow.
User process components do the following:
- Separate the user interaction flow from its implementation.
- UI elements need to keep a references to the current user process component.
This reference should be kept in some member variable.
- Encapsulate how exceptions affect the user process flow.
- Keep track of the current state of the user interaction.
- Should not start or participate in transactions.
- Maintain internal business-related state, usually holding on to one or
more business entities that are affected by the user interaction.
- May provide a save and continue later where a particular user
interaction may be restarted in another session. User process state can be
persisted in many places:
- If the user process is to be continued from another machine or device,
state can be persisted in the database.
- If the user process is to be continued from a disconnected
environment, state can be saved in the local hard drive.
- If the user process is running in a web farm, you will need to store state
in a central location so that this state can be accessible from any server.
- Separate user processes are most needed in applications with a large
number of dialog boxes, or in applications where the user process may
benefit from customizations.
- User processes often store state in one or more of the following
locations:
- If the process is running in a connected fashion, store state in the
database. In disconnected scenarios, store state in local XML files,
isolated storage or in the local SQL Server 2000 Desktop engine (MSDE).
- If the process is not long-running and does not need to be recovered
in case of a problem, you should persist the state in memory.
- For ASP.NET applications, store state in the Session object. If you
are running in a Web farm, store state in a central state server or in
the database.
- User processes should be serializable to help implement any persistence
scheme.
- User processes should also include exception and error handling by
propagating exceptions to the UI.
A user process should be designed to expose the following interfaces:
These interfaces are explained below:
- Actions: These are methods that typically trigger some change in
the state of the user process. Actions are implemented as methods such as PlaceOrder,
ProcessPaymentDetails, and so on.
- State: These are set/get properties that allow access to business-specific and business-agnostic state of the user process.
- Events: Events that are fired on changes in the business-specific
and business-agnostic state of the user process.
- Control: Control functions to start/pause/restart/stop a
particular user process. Control methods are often used to load required
data for UI.
Business functionality is the core of the application. An application
performs a business process that consists of one or more tasks. In the simplest
case, each task can be represented as a single method in a component, and this
method can be called either synchronously or asynchronously. For example, you
might have an application whose business process is selling books. Selling books
obviously consists of many tasks such as capturing customer's order, verifying
payment details, arranging delivery, and so on. A more complex business process has multiple tasks, but each task may require
multiple steps with long running transactions. For these complex business
processes, the application needs some way of orchestrating business tasks and
storing state until the process is completed.
You can design the logic in the business layers to be used directly by the
presentation components, or to be encapsulated as a service and be called
through a service interface. Your business components may also make requests of
external services, in which case you may need to implement service agents to
manage conversation with those external services. The following figure and
subsequent sections refer to individual components of the business layer:
One of the first decisions in designing a business layer is to decide if a
set of business components will be sufficient or if you need to orchestrate the
business process performed by these business components.
When to implement the business process using a set of business component:
- You do not need to maintain state beyond the current business activity and
the business functionality can be implemented as a single atomic
transaction.
- You need to encapsulate functionality that can be used from other business
processes.
- The business logic is computationally intensive or needs fine-grained
control of data structures and APIs.
- You need to have a fine-grained control over data and flow logic.
When to implement the business process using business components and workflows:
- You need to manage a business process that involves multiple steps and
long-running transactions.
- You need to expose a service interface that implements a business process
enabling your applications to talk with other (external or internal)
services.
For example, the business process of placing an order involves many
steps and these steps must be performed in a specific sequence (collecting order
item, calculating total cost, authorizing payment, arranging delivery, and so
on). The appropriate design for this business process is to create business
components encapsulating each step and then to orchestrate these steps using a
business workflow.
Business components implement business rules and accept/return simple and
complex data. Business components should expose functionality that is agnostic
to data stores (databases, files, storage, etc.) and services needed to perform
the work.
If a business process invokes other business processes in the context of an
atomic transaction, all the invoked business processes must ensure their
operations participate in the existing transaction, so that their operations can
roll-back if the calling business logic aborts. This implies that is should be
safe to retry an atomic transactions if it fails without worrying about making
data inconsistent. Think of a transaction boundary as a retry boundary.
Microsoft offers several technologies for managing transactions - Distributed
Transaction Coordinator (DTC), COM Transaction Integrator (COMTI), and
Host Integration Server.
If you cannot implement atomic transactions, you must provide compensating
methods and processes. Note that a compensating action does not necessarily
roll-back application data to the previous state, but rather restored the
business data to a consistent state. For example, when canceling an order, you
have to restore the product quantity for each ordered product, but you may also
impose a fee for order cancellation.
The following list summarizes recommendation for designing business
components:
- Use message-based communication as much as possible.
- Ensure that processes exposed through service interfaces will not reach an
inconsistent state if the same message is received twice.
- Choose transaction boundaries carefully so that retries and composition
are possible.
- Business components must be able to run in the context of an service user
- not necessarily impersonating a specific application user.
- Choose and keep a consistent data format for input parameters and return
values (i.e, DataSets, XML, and so on)
- Set transaction isolation levels appropriately.
The following list summarizes recommendation for implementing business
components. Business components:
- Will be called by the user process layer, service interfaces, and other
business processes typically with some business data to operate on.
- Will invoke data access logic to retrieve and/or update application data.
Business components can also invoke service agents and other business
components.
- Are the root of transactions and must therefore, vote in transactions they
participate in.
- Must validate input and output.
- May need to expose compensating operations for the business processes they
provide.
- May call external services through service agents.
- May call other business components and initiate business workflows.
- May raise an exception to the caller.
- May use the features of Enterprise Services for initiating and voting on
transactions. See Enterprise Services in MSDN for more details.
The following figure shows a typical business component interacting with
components from surrounding layers, and with components from the same layer:
There are many commonly used patterns that can be applies when it comes to
implementing business components:
Pipeline Pattern
A pipeline defines a collection of steps that execute in sequence to fulfill
a business process. Each step may involve reading or writing data to confirm the
pipeline state, and may or may not access an external service. When executing an
asynchronous service as part of a step, the pipeline can wait until a response
is returned or process to the next step in the pipeline if a response is not
required in order to continue processing. The pipeline pattern can be used when:
- You can specify the sequence of a known set of steps.
- You do not need to wait for an asynchronous response from each step.
- You want all downstream components to be able to inspect and act on data
coming from upstream components - but not vice versa.
The advantages of this pattern is that it is simplifies the actions of a
business component into small and well-known steps, enforces sequential
processing, and makes it easy to wrap in an atomic transaction. Disadvantages
include inability to handle well conditional constructs, loops and other flow
logic.
Event Pattern
From a business component point of view, the event pattern is semantically
the same as that in Windows Forms. Whereas UI elements in a Windows Forms
application fire UI events (OnMouseDown) in response
to user actions and event handlers handle those events, so are business events
fired under particular business conditions and business components are written
to handle those events. The event pattern is used when:
- You want to manage independent and isolated implementations of a specific
function.
- Responses from one implementation do not affect the way other
implementations work.
- All implementations are write-only or file-and-forget
The advantages of this pattern is that maintainability is improved by keeping
unrelated business processes independent, encourages parallel processing, and is
agnostic to whether implementations run synchronously or asynchronously because
no response is required. Disadvantages include factors such as inability to
build complex responses for the business function, and inability to use
status/data of another component.
The following diagram shows how an orchestrated business process interacts
with other components from with the same layer and from different layers:
Note the following points:
- Business workflows can be invoked from other services or from the
presentation layer.
- Business workflows can invoke other services through service agents
- Business workflows invoke business components.
- Business workflows invoke data access logic to perform data-related
activities.
When designing business workflows you must consider long response times or no
responses at all.
If you are exposing business functionality as a service, you need to provide
clients of this business process with an entry point by creating a service
interface. A service interface is typically implemented as a facade that handles
mapping and transformation services, and enforces a process and a policy for
communication. A service interface implements a set of methods that can be
called individually or in a specific sequence to form a conversation that
implements a business process. For example, a service interface for credit card
payment may expose two methods - AuthorizeCard and ProcessPayment
- and these two methods need to be called in sequence to actually accept payment
from the user. From an implementation perspective, it is important to note that
a service interface is actually another component (a C# class
rather than an interface.)
Consider the following when designing service interfaces:
- Think of a service interface as a trust boundary for your application.
- Design the service interface is such a way that internal changes to
implementation will not require changes to the service interface. This is
especially useful if the service interface was exposed to the external
consumers.
- The same business logic may need to be consumed in different ways by
different clients, so you may need to publish multiple service interfaces
for the same functionality.
- Different service interfaces may define different communication channels,
message formats, authentication mechanisms, transactional capabilities,
caching, mapping, and simple format/schema transformations. However, service
interfaces should not implement business logic. For example, the same
service interface may be implemented as two C# classes, one supporting
communication through DCOM and another through .NET Remoting.
- Service interfaces can be implemented in many ways - for ASP.NET
applications, a service interface is just another ASP.NET page, and for .NET
application, a service interface is just another C# class. If the .NET
client uses Message Queuing to send message, the service interface could be
a Message Queue Trigger.
- Service interfaces should be designed with maximum interoperability with
other platforms and services, relying whenever possible on industry
standards for communication, security, and formats.
If you are planning on building a system that may be invoked through
different mechanisms, then you should add a facade between the business logic
and the service interface. For example, if you choose to build a Web Service,
then most of the service interface logic will be in the Web Service itself (.asmx
files). This facade provides extra maintainability because it can isolate
changes - say in the communication mechanism - from the implementation of the
business logic. The service interface then only deals with the specifics of the
communication mechanism or channel (for example, examining SOAP headers for
context information). The following figure illustrates:
In the above figure, an ASP.NET application running IIS receives an HTTP
message and then invokes Service Interface 1 which inspects some SOAP header
values and sets the correct principal object based on the authentication of the
Web Service. Service Interface 1 then invokes the Business Facade component to
validate, authorize, and audit the call. The facade then invokes the business
component to perform the actual business work. At a later stage in the
application lifecycle, it was determined that business components should also be
available via MSMQ. A custom MSMQ listener is used to pick up messages and then
invokes Service Interface 2 to extract some data off the message and set the
correct principal object on the thread based on the message signature. Then the
facade is used to invoke the business component as usual. The main point here is
that by factoring the code of the business facade outside of the service
interface, the application was able to add a communication mechanism without
having to change the business component.
The service interface will need to deal with channels that do not provide
transactional capabilities (XML Web Service) and channels that do provide
transactional capabilities (Message Queuing). It is very important that
transaction boundaries can be designed so that operations can be retried in an
error. To do so, make sure that all your resources are transactions and that
root components require transactions while all other sub
components require/support transactions:
- Transactional Messaging
The service interface starts the transactions first and then processes the
message. If the transaction fails, the message is 'unreceived' and placed
back in the message queue for a retry. For example, when using MSMQ you can
define a message queue-and-receive operation as transactional to achieve
this automatically.
- Non-transactional Messaging
The service interface code must call the root of the transaction. In case of
failure, you can design the service interface functionality to retry the
operation or return to the caller an appropriate exception, or may be just
set some data flag to represent failure.
Business entities exhibit the following behavior:
- Business entities contain snapshot data. They are effectively a local cache
of data - data can only be guaranteed to be consistent if it is read in the
context of an active transaction.
- Business entities store data
values and expose them via properties, therefore, they essentially follow a stateful
programming model.
- A business entity typically has a schema that is a
denormalization of underlying schemas. In other words, it may represent data
that has been aggregated from many sources. In general, you should not map one business entity to one
database table
- Business entities should be serializable to persist the current state of
the entity. For example, the application may need to store the business
entity on desk if the application is working offline.
- Business entities do not initiate any transactions. Transactions are the
responsibility of the application or business components using these
business entities.
The following business entity topics are further discussed:
When passing data around from one layer to another, or even within different
components in the business layer, you can do so in many formats. These formats
vary from data-centric like XML to more object-oriented like a Typed DataSet.
Common formats for passing data in .NET applications are:
- XML
- DataSet
- Custom objects with data that map to fields and methods that perform data
modifications using the data access layer.
- Typed DataSet
- DataReader
Generally, it is recommended that data-centric formats like DataSets be used
to pass data between tiers. DataSets can then be used to hydrate custom business
entities if you want to work with data in an object-oriented approach. In many
cases, it will also be simpler to work with business data directly from the
DataSet.
- Decide whether the XML document should contain a single business
entity or a collection of business entities.
- Use a namespace to uniquely identify the document.
- Retrieve business entities in XML using SQL Server FOR XML clause,
or a DataSet that is tranformed into XML, or by building the business
entity XML from scratch
|
- Standards support.
- Flexibility as XML can represent hierarchies and collections
- Interoperability with external partners and services
|
- Type fidelity is not preserved, but you can use XSD for simple data
typing.
- Parsing XML (manually or via XSD) is slow.
- Cannot automatically bind XML data to UI. You will need to write an
XSLT transformation to transform the data into a .NET bindable type.
- Cannot automatically sort XML. You may need to use XSLT or transform
the data into a sortable .NET type like a DataView .
|
DataSet |
|
- Very flexible.
- Supports serialization.
- Supports data binding to any UI element.
- Interchangeable with XML
- Availability of metadata.
- Supports optimistic concurrency.
|
- High instantiation and marshalling costs.
- Do not have the option of hiding information through private fields.
|
Custom
Business Entity Component |
|
|
- Contains private fields to cache the entity's data locally.
- Contains public properties to access the state of the entity.
- Contains methods to perform localized processing.
- Contains events to signal changes in the entity's internal state.
|
- Code readability via typed methods and properties.
- Can contain methods to encapsulate simple business rules such as IncreasePriceNPercent(int
n).
- Can perform simple validation tests.
- Can hide information via private fields.
|
- A custom business entity represents a single business entity.
Calling application must use a collection to hold multiple business
entities.
- You must implement serialization
- You must implement your own mechanism for representing hierarchies
and relationship of data in a business entity component.
- You must implement IComparable to allow
entity components to be held in a sortable container.
- You must deploy assembly containing business entity to all physical
tiers.
- If database schema is modified, the custom business entity needs to
be modified and redeployed.
|
In most cases you should work with data directly using XML documents or data
structures provided by ADO.NET - DataSet, DataTable,
etc. This allows you to pass structured data between the layers of your
application without having to write any custom code. Business entities
are custom components used to represent data and they are considered as part of
the business layer. Business entities can be consumed by other business
components or by presentation components.
So who consumes business entities? Consumers include:
- UI components for rich clients
These UI components may bind to the data in business entities or to the data
returned by any queries that the component may expose.
- User process components
User process components may hold one or more business entity as part of its
internal business-specific state.
- Business components
A business components may pass a business entity as a parameter to a data
access logic component.
You only need to write custom business entity components if:
- You want to encapsulate all the details about working with a particular
format, or
- You want to add behaviors to your data, or,
- You want to tighten control over what other application components can do
with the data.
- You want to abstract internal data formats from the schema that the
application is using.
Business entity components must expose the following functionality:
- Property accessors (get/set) for attributes of the entity.
- Collection accessors for sub-collections of related data. There are two
ways to represent collections - using a .NET collection such as ArrayList or
using a DataSet.
- Control functions to manage the entity, i.e., functions like Load,
Save, Validate, etc.
- Methods to access metadata for the entity. This can be useful in improving
maintainability of the user interface.
- Events to signal changes in the underlying data. Exposing events to UI
allows the UI to refresh its data.
- Methods to perform business tasks or get date for complex queries. These
methods may act on local data or on business components and processes.
- Methods and interfaces for data binding.
Consider the following recommendation when designing business entities:
- Business entities should not update the data store each time any of its
properties change. Instead, provide an Update
method to propagate all local changes to the data store.
- Do not access data directly. Use data access logic components instead. In
other words, business entities has no knowledge of Data Access Logic
Components.
- Do not initiate any transactions. Transactions should only be initiated by
business components or UI process components.
- Implement business entities by deriving them from a base class that
provides boilerplate functionality.
- If the business entity contains any internal collections, use DataSets and
XML documents rather than structs, arrays and so on.
- Implement a common set of interfaces across all business:
- IBusinessEntityControl
Control methods and properties such as Load,
Save, Delete, Update,
IsDirty, etc.
- IBusinessEntityMetadata
Methods to retrieve information about the underlying metadata
such as GetChildDataSetMetadata, etc.
- Business entities should validate their encapsulated data through
continuous and point-in-time validation rules.
- You may need to implement an implicit enforcement of relationships between
different business entities based on data schema and business rules. For
example, a business entity representing an Order
may limit the maximum number of Items - another
business entity -that it (Order) can hold.
- Make business entities serializable. You can either use XML serialization
via the XmlSerializer class or formatted
serialization via the BinaryFormatter / SoapFormatter.
The following represents a sample code of a business entity component called CustomerBusinessEntity
that also exposes events as its state changes:
// Define a common event for all
business entities
public class EntityEventArgs : EventArgs
{
// Define event class members, like
datetime, business entity type name
// (obtained via reflection) and others
}
public delegate void EntityEventHandler
(object sender, EntityEventArgs args);
/* A data access logic component
called CustomerDALC will
create the business entity and populate all its fields. */
public class CustomerBusinessEntity
{
/* Events fired by this class */
public event EntityEventHandler
BeforeChange;
public event EntityEventHandler
AfterChange;
/* Data members - private fields to hold state of the business entity */
private string m_strFirstName
= "";
private string m_strLastName
= "";
private string m_strAddress
= "";
private DateTime m_dtDOB;
private DataTable m_dtCurrentOrders;
/* Public properties to get/set state of object */
public string FirtName
{
get { return m_strFirstName; }
set
{
BeforeChanges(
this, new EntityEvnetArgs();
m_strFirstName = (string)value;
AfterChanges(
this, new EntityEvnetArgs();
}
}
public string LastName
{
get { return m_strLastName; }
set
{
BeforeChanges(
this, new EntityEvnetArgs();
m_strLastName = (string)value;
AfterChanges(
this, new EntityEvnetArgs();
}
}
public string Address
{
get { return m_strAddress; }
set
{
BeforeChanges(
this, new EntityEvnetArgs();
m_strAddress = (string)value;
AfterChanges(
this, new EntityEvnetArgs();
}
}
public DateTime DOB
{
get { return m_dtDOB; }
set
{
BeforeChanges(
this, new EntityEvnetArgs();
m_dtDOB = (DateTime)value;
AfterChanges(
this, new EntityEvnetArgs();
}
}
public DataTable CurrentOrders
{
get { return m_dtCurrentOrders; }
set
{
BeforeChanges(
this, new EntityEvnetArgs();
m_dtCurrentOrders = (DataTable)value;
AfterChanges(
this, new EntityEvnetArgs();
}
}
/* Public methods to perform some localized processing */
public bool IsCustomerInAgeGroup( int nAgeGroup )
{
// Determine age group based on customer's DOB
}
}
Business entity components should propagate exceptions to their direct
callers. Business entity components may also raise exceptions if they are
performing any validations or if, for example, the caller supplies missing data.
The following example illustrates:
public class CustomerEntity
{
public void Update( string strFirstName, string strLastName )
{
try
{
// Check that names are valid
if (strFirstName
== null) || (strLastName == null)
throw new InvalidArgumentException ("Customer names are not valid" );
if (strFirstName.Length
== 0) || (strLastName.Length == 0)
throw new InvalidArgumentException ("Customer names are empty" );
//
Call customer data access logic component to update customer
...
}
catch( Exception ex )
{
throw; // Propagate
exception to caller
}
finally
{
}
}
}
The following sections discuss the choice of data stores, design of data
access components, and choices available for representing data
Common types of data stores include:
- Relational Databases
Relational databases provide high-volume, transactional, high-performance
data management with security, operations, and data transformation services.
- Messaging Databases
Messaging databases like Exchange Server are useful if the application is
groupware-, workgroup-, or messaging-centric and you do not want to rely on
other data stores that may need to be managed separately.
- File Systems
You may decide to store data in your own files in the file system.
- Others
There are many other data stores like XML databases, object databases, data
warehouses, and so on. Consult MSDN for more information.
Data Access Logic Components abstract the semantics of the underlying data
store (i.e., SQL Server) and the underlying data access technology (i.e.,
ADO.NET) and provide a simple programmatic interface for retrieving and
operating on data. They are not to be confused with Data
Access Helper Components which centralize generic data access functionality.
Data access logic components usually implement a stateless design pattern
that separates the business processing from data access logic. Each data access
logic component typically provides CRUD operations (Create, Read, Update, and
Delete) relating to a specific business entity. They also include paging
functionality when retrieving large records. When an application contains
multiple data access logic components, it becomes important to centralize data
access logic in a data access helper component that manages database
connections, transactions, command execution, and so on.
The difference between data access logic component and data access helper
components is that the former provides logic to access specific business data,
while the latter centralizes data access API (i.e., ADO.NET) and data connection
configuration. Note: See the Data
Access Application Block provided by Microsoft, This block can be used as a
generic data helper component.
The following figure shows the relation between data access logic components
and data access helper components:

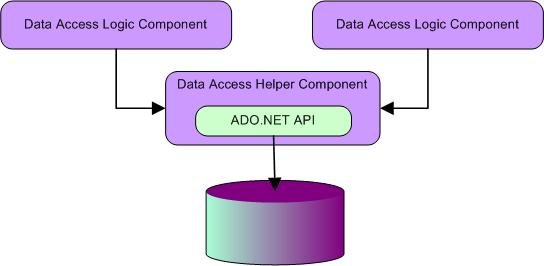

The following code show a partial skeletal outline of a data access logic
component for accessing Order data:
public class ProductData
{
// Constructors
public ProductData
{ // Acquire connection string from a secure location
}
// Public interface
public DataSet GetProducts()
{ // Acquire all products }
public DataRow GetProduct( long lID }
{ // Acquire a specific products }
public UpdataProduct( DataRow drProduct ) { //
Update a specific product in the database }
}
The following sections provide more details on data access logic components:
Data access logic components should have the following functionality:
- Perform simple mappings and transformations of input and output arguments.
- Access data from one data source only. This improves maintainability by
moving all data aggregation functionality to the business component where
data can be aggregated according to the specific business process being
performed.
- [Optional] Use a custom utility component to manage and encapsulate
locking mechanisms..
- [Optional] Use a custom utility component to implement data caching
strategy.
- [Optional] Implement dynamic data routing functionality for very large
scale systems that provide scalability by distributing data across multiple
data servers.
Data access logic components should not have the following
functionality:
- Invoke other data access logic components.
- Initiate heterogeneous transactions.
- Maintain state across method calls.
To support a wide range of business processes and applications, you can pass
and return data to/fromData Access Logic Components in several different formats
- arrays, XML, DataSets or custom business entity component.
One of the first steps in writing business entities is to decide how to map
tables to business entities. For example, typical operations in a hypothetical
retails would be to get/update information about a customer (including address),
get a list of orders for a customer, get/update information about a product and
so on. To fulfill these requirements, you can come up with three logical
business entities - Customer, Product, and Order. For each business entity, a
separate Data Access Logic Component (DALC) will be defined as follows:
- CustomerDALC: Retrieves and modifies data in the [Customer]
and [Address] tables.
- OrderDALC: Retrieves and modifies data in the [Order]
and [OrderDetails] tables.
- ProductDALC: Retrieves and modifies data in the [Product]
and [ProductOffers] tables.
To map relational data to business entities, observe the following
guidelines:
- Do not define a separate business entity for each table. Take the time to
analyze and understand the logical entities of the application.
- Do not define separate business entities to represent many-to-many
relations. These methods can be exposed through methods in the Data Access
Logic Components. For example, in the preceding example, [OrderDetails]
is not mapped to a separate business entity, instead the OrderDALC encapsulates
the [OrderDetails] table to achieve the
many-to-many relations between [Order] and [Product]
tables.
- If you have methods that retrieve a particular type of business entity,
place those methods in the Data Access Logic Component for that type. For
example, when retrieving all orders for customer, implement
this function in the OrderDALC.
- DALCs typically access data from a single source. If aggregation from
multiple sources is required, define a separate DALC to access each data
source. These DALCs are then called from higher-level business components
that can perform the aggregation. Reasons for this approach are:
- Centralizing transaction management in the business process
components.
- By separating access to each data source, returned data can be either
stand alone or part of aggregated data.
Data access logic component often expose their functionality to the following
consumers:
- Business components and workflows
These consumers often consume disconnected business documents and/or scalars
in a stateless manner.
- User Interface components
These consumers often consume disconnected business documents for data
rendering operations.
Data access logic component often expose the following functionality to their
consumers:
- CRUD functions to manage business entities.
- Queries that may involve getting data from different data sources for
read-only purposes.
- Relating meta-data relating to entity schema, query parameters, or result
set schemas.
- Paging for user interfaces that require subsets of data (usually when
scrolling through a large result set.)
When designing data access logic components, consider the following design
recommendations:
- Return only the data you need - improves performance and enhances
scalability.
- Use stored procedures to abstract data access from the underlying data
schema.
- Relay on the database to do data-intensive work.
- Expose functionality that is common across all data access logic
components in a base class or in a separately defined interface.
- Design consistent interfaces for different clients:
- ASP.NET-based clients will benefit from using DataReaders
rather than DataSets. DataReaders
are best for read-only forward-only operations in which processing
for each row is fast.
- Windows Forms-based clients will benefit from using DataSets
rather than DataReaders. DataSets
are best for disconnected scenarios.
- Let data access logic components expose metadata for the data and
operations it deals with. If a method already returns one of the ADO.NET
data structures (DataTable or DataSet
for example), then metadata should already be available.
- Do not necessarily build a data access logic components per table. Data
access logic components should be designed to expose a slightly higher level
of abstraction that is consumable from your business components.
- If you store encrypted data, data access logic components should decrypt
data before sending it back to consumers.
- Use data access helper components to centralize generic data access
functionality.
The following represents a sample code of a data access logic component
called CustomerDALC for the CustomerBusinessEntity
class shown previously:
public class CustomerDALC
{
/* Data members */
private string m_strConnectionString = "";
/* Constructors */
public CustomerDALC()
{
// Acquire the connection string from a secure location
}
/* Data access methods */
public CustomerBusinessEntity
GetCustomer( int nID )
{
// Use data access helper components to retrieve data
}
public int CreateCustomer( string strName, string strAddress, string DateTime dtDOB )
{
// Use data access helper components to create a new customer entry in the database
// and return customer ID
}
public void DeleteCustomer( int nCustomerID )
{
// Use data access helper components to delete customer from the database
}
public void UpdateCustomer( DataSet dsCustomer )
{
// Use data access helper components to update customer in the database
}
}
// Code in some business component
CustomerDALC
dalc = new CustomerDALC();
CustomerBusinessEntity be = dalc.GetCustomer( 123 );
...
Data Access Logic Components should propagate exceptions back to direct
callers. The following example illustrates:
public class CustomerDALC
{
public void LoadCustomers()
{
try
{
// Load all
customers from database
}
catch ( Exception ex )
{
threw new
DataAccessException ( ex.Message );
}
finally
{
// Cleanup
}
}
public UpdateCustomers() { ... }
public DeleteCustomer() { ... }
public AddCustomers ( CustomerBusinessEntities collBE ) { ...
}
}
Centralize generic data access functionality in a data access helper
component can help produce cleaner code and a more manageable design. Consider
data access helper component as a generic caller-side facade to the data store.
They are typically agnostics to the application logic being performed.
If you are designing your application to be agnostic to the data source being
used (for example, to be able to access Oracle, SQL Server and so on), you would
have two data access helper components, one that use the ADO.NET provider
classes for Oracle (OracleCommand, ... ), and
another helper component that uses ADO.NET provider for SQL Server (SqlCommand,
... ). You can then use the Factory pattern to create the appropriate component
while providing a uniform interface to both components.
In general, the goals of a data access helper components are:
- Abstract data access API programming from the data-related business logic
encapsulated by the data access logic components.
- Isolate the following:
- Connection management semantics.
- Data source location (through connection string management).
- Data source authentication.
- Transaction enlistment
- ADO.NET versioning dependencies from data access logic components.
- Centralize data access logic for easier maintenance
- Provide a single point of interception for data access monitoring and
testing.
The Data
Access Application Block for .NET should be used as a model on how to
design data access helper components for .NET
If your business process talks to external services, then you will need to
handle the semantics of calling each service that you want to communicate with.
Specifically:
- You will need to use the correct communication API and perform any
necessary translation between the data formats used by the service and those
used by your business process.
- If calling an external service also involves long-running conversations,
then you will also need to keep intermediate state while waiting for a
response.
Think of service agents as data access logic components for services rather
than for data stores. You can also think of service agents as proxies to
other services. The goals of using a service agent are therefore:
- Encapsulate access to services.
- Isolate business process implementation from the service implementation in
terms of data formats or schema changes.
- Provide input and output data formats that are compatible with the
business components.
- [Optional] Perform basic validation of data exchanged with the service.
- [Optional] Cache data for common queries.
- [Optional] Authorize access to the service.
- [Optional] Encrypt outgoing/decrypt incoming data.
- [Optional] Provide monitoring information.
In certain scenarios, service agents may receive asynchronous data from
business components. Service agents may also send asynchronous data to services.
When messages are exchanged asynchronously, you need to keep track of the
conversation state -which conversation does a set of message belong to. There
are two options:
- Use business data in the message to identify the conversation. For
example, the OrderID can be used to correlate a
set of messages to a specific conversation.
- Provide an infrastructure component that provides GUIDs for specific
conversations and attach them to messages.
This chapter described general recommendation for designing different kinds
of component commonly found in distributed systems. The next chapter discusses
the effect of various policies (security, communication, etc. ) on the design of
the application.
